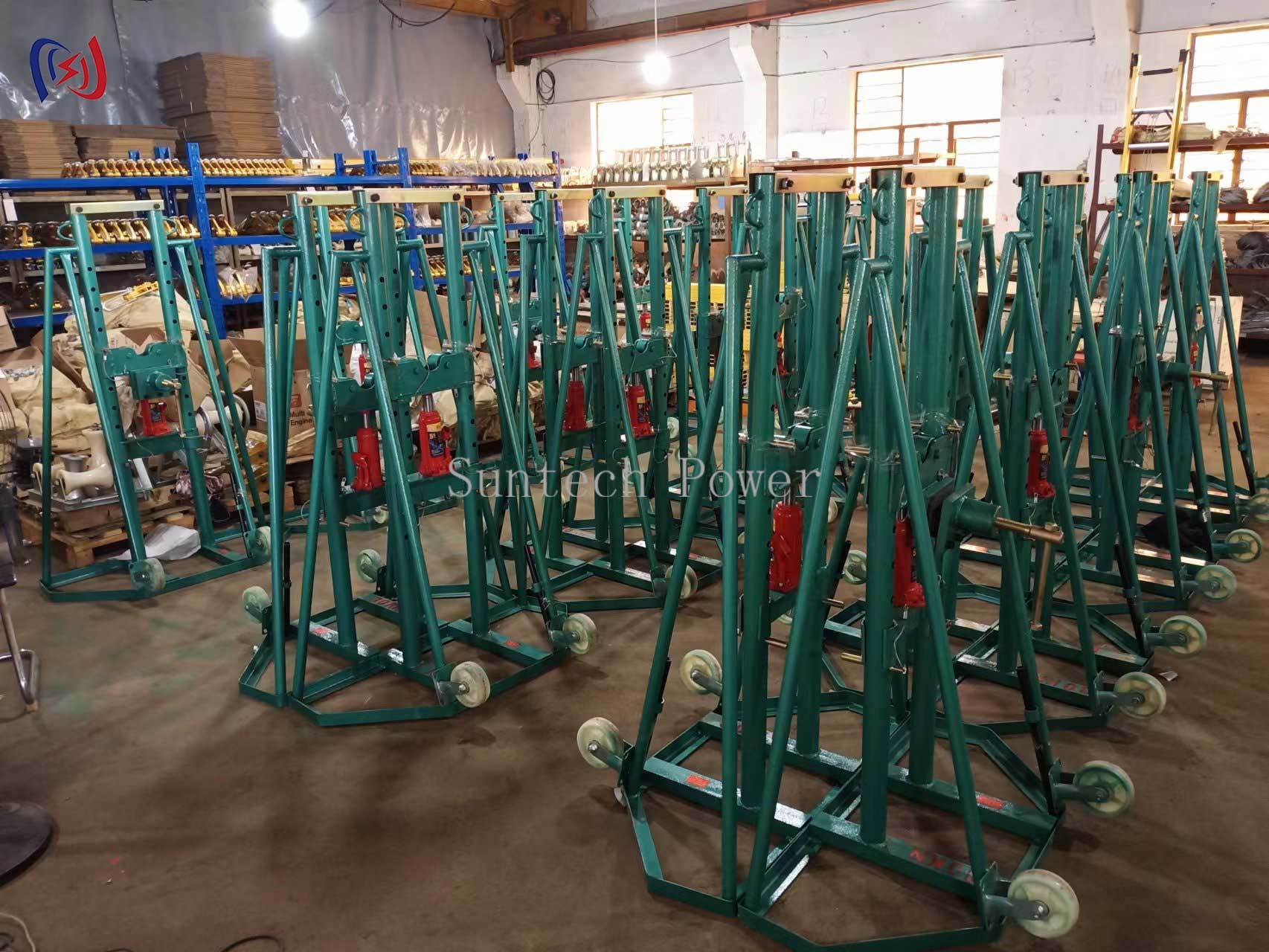

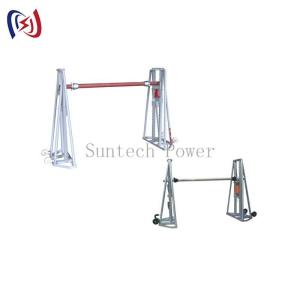

Hydraulic Type Cable Reel Stand High Efficiency Reel Support For Grid Projects

Name: Hydraulic Type Cable Reel Stand High Efficiency Reel Support For Grid Projects
Brand: Suntech Tower
Price: 1 USD

Wholesale Hydraulic Type Cable Reel Stand High Efficiency Reel Support For Grid Projects from china suppliers

Brand Name : Suntech Tower

Model Number : SI

Certification : ISO, CE

Place of Origin : China

MOQ : 1 PCS

Price : Negotiation

Payment Terms : L/C,T/T

Supply Ability : 8000 PCS/Month

Delivery Time : 3-5days

Packaging Details : Plywood Case

Name : Hydraulic Type Cable Reel Stand

Item No. : 21346-21344

Model : SI-5-SI-30

Rated Load : 50-300KN

Weight : 172-600KG

Warranty : 1 year

Contact Now

Hydraulic Type Cable Reel Stand High Efficiency Reel Support For Grid Projects

Core Design Features

Heavy-duty hydraulic lifting system with 10-ton capacity (20-ton overload protection)
Steel reinforced frame with powder-coated finish for corrosion resistance
Adjustable reel arms accommodate 600-2500mm diameter cable drums
360° rotating platform with low-friction bearing system
Dual hydraulic cylinders for balanced lifting force distribution
Built-in pressure gauge for real-time load monitoring

Operational Advantages
✔ One-person operation with ergonomic hydraulic pump handle
✔ Precision height adjustment (50-1500mm lifting range)
✔ Smooth rotation reduces cable payout resistance by 60%
✔ Quick-release mechanism for fast drum changes (<1 minute)
✔ Stabilizing outriggers prevent tipping during operation

Hydraulic System Specifications
• Working pressure: 70MPa
• Pump oil capacity: 2.5L (ISO VG 46 hydraulic oil)
• Cylinder stroke: 1000mm
• Emergency manual lowering valve for power failure situations

Safety Features
✓ Automatic pressure relief valve (set at 110% max load)
✓ Mechanical locking pins at 5 height positions
✓ Non-slip rubber pads on all contact surfaces
✓ High-visibility safety markings on moving parts

Maintenance Requirements

Monthly inspection of hydraulic hoses and connections
Quarterly oil change (or every 500 operating hours)
Annual rebuild of hydraulic cylinders
5-year structural integrity inspection

Typical Applications
➔ High-voltage cable drum handling
➔ OPGW fiber optic cable installation
➔ Substation cable pulling operations
➔ Underground cable deployment
➔ Emergency power restoration work

Item number	Model	Rated Load(KN)	Applicable Cable Reel (mm)			Weight (kg)
Item number	Model	Rated Load(KN)	Diameter	Width	Hole Diameter	Weight (kg)
21346	SI-5	50	≤ Φ2400	≤1600	Φ76-103	172
21347	SI-10	100	≤ Φ2700	≤1700	Φ120-135	230
21348	SI-10A	100	≤ Φ3400	≤1900	Φ120-135	230
21349	SI-16	160	≤ Φ4000	≤2500	Φ125-200	325
21343	SI-20	200	≤ Φ4000	≤2500	Φ135-160	450
21344	SI-30	300	≤ Φ5000	≤3100	Φ160-200	600
