Heavy Duty A-Shape Tubular Gin Pole For Transmission Tower Construction
Superior Structural Design
- A-frame tubular steel construction provides exceptional stability and load-bearing capacity
- Reinforced cross-bracing and welded joints for maximum structural integrity
- Modular components allow for flexible configurations and easy assembly
Electrical Industry Applications
- Essential for transmission tower erection crews
- Perfect for substation structural installation projects
- Ideal for heavy equipment positioning in power plant construction
Advanced Safety Features
- Integrated load monitoring system with visual indicators
- Redundant safety locking mechanisms for fail-safe operation
- Overload protection with audible alarms
Material and Construction
- High-grade structural steel tubes with hot-dip galvanized finish
- Precision-engineered connection points for secure assembly
- Corrosion-resistant coating for harsh outdoor environments
Operational Advantages
- Quick assembly system saves valuable installation time
- Adaptable to various tower configurations and angles
- Lightweight yet extremely durable tubular design
Durability and Reliability
- Weatherproof construction withstands extreme environmental conditions
- Sealed bearing systems prevent contamination from dust and moisture
- Temperature resistant from -40°C to 80°C for year-round operation
Proper Usage Guidelines
- Conduct pre-use inspection of all components and connections
- Verify all connection points are properly secured before loading
- Store in dry conditions when not in use to prevent corrosion
Maintenance Recommendations
- Clean with soft brush after dusty or muddy operations
- Lubricate moving parts every 200 hours of use
- Annual structural integrity inspection required
Why Professionals Choose Our Product
- Preferred by major power transmission companies
- Proven performance in extreme working conditions
- Backed by 10-year structural warranty
Customization Options
- Available in multiple height configurations from 5m to 20m
- Custom load capacities up to 10 tons available
- Special coatings for marine or highly corrosive environments
Purchasing Benefits
- Volume discounts for utility providers and contractors
- On-site assembly training available for large orders
- Flexible financing options for qualified buyers
Versatile Applications
- Tower section lifting and precise positioning
- Heavy transformer installation in substations
- Temporary structural support during construction
- Emergency repair operations for damaged towers
Safety Compliance
- Meets ANSI/AISC 360-16 structural standards
- Exceeds OSHA 1926.251 safety requirements
- Certified for electrical infrastructure use
Performance Guarantee
- Consistent load-bearing performance in all conditions
- Reliable operation in extreme weather
- Long service life with proper maintenance
| Item number | Model | Length (M) | Diameter*wall (MM) | Vertical Load (KN) | Safety Factor (K) | Weight (KG/M) |
| 03311 | LBGR120A | 6-9 | 120x7 | 17-30 | 2.5 | 7.5 |
| 03321 | LBGR150A | 8-13 | 150x6 | 13-31 | 2.5 | 8 |
Product Tags:
|
|

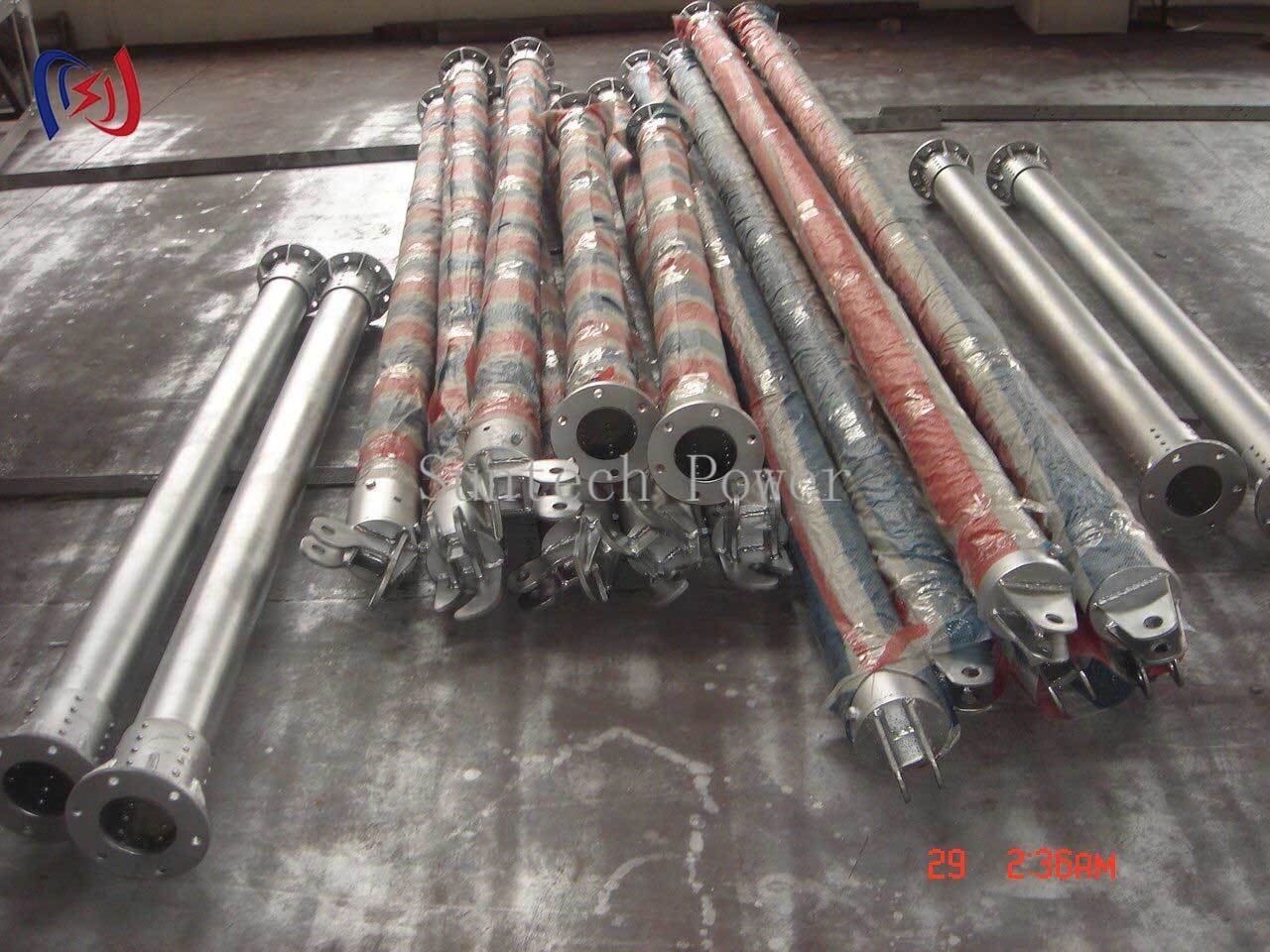

Heavy Duty A-Shape Tubular Gin Pole For Transmission Tower Construction Images
|
