Heavy-Duty Cable Turntable for Power Transmission & Distributio
The Cable Turntable is an indispensable piece of equipment in modern power infrastructure projects, designed to safely handle, deploy, and retrieve heavy cables during installation, maintenance, or upgrades of electrical networks. Engineered for both high-voltage transmission lines and substation cable laying, this robust system ensures smooth, tangle-free cable management while significantly reducing labor intensity and operational risks.
Critical Applications
Transmission Line Projects: Unspooling ACSR/AAC conductors during overhead line stringing.
Substation Installations: Deploying HV busbar cables or grounding grids in confined spaces.
Renewable Energy: Handling wind turbine export cables (up to 66kV) or solar farm DC collections.
Tunnel/Underground Laying: Feeding cables through conduits with precise tension control.

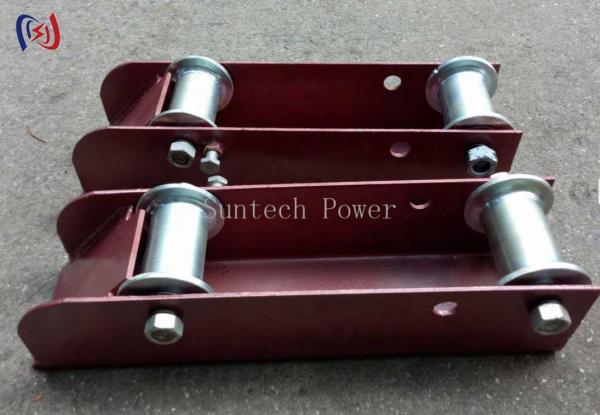

Cable Reel Rotator Platform
servesas cable reel spread fixture .apply to electric power ,communication andrelatively industry to lay cable .the product consisting of turntable ,roller,axis of roller and lock fixture ,mounte.
Using method:
1. Mountedon two roller base on the drum diameter.
2 .Lockthe roller on the slope.
3. Adjustroller base on the drum diameter.
4. Slopesthe drum rim up the turntable along its slants.
5. Relievethe locking roller ,then you can turn the drum .
Technical Data
| Item number | 21553 | 21552 | 21551 |
| Mode | HZT1250 | HZT1800 | HZT2500 |
| Appllicable drum diameter (mm) | φ500～1250 | φ500～1800 | φ500～2500 |
| Maximum weight of drum(kg) | 500 | 1500 | 1500 |
| Dimension(mm) | 470×172×105 | 650×150×145 | 900×230×130 |
| Single piece weight (kg) | 17 | 40 | 73.5 |
